UC800M Under Sink Chiller

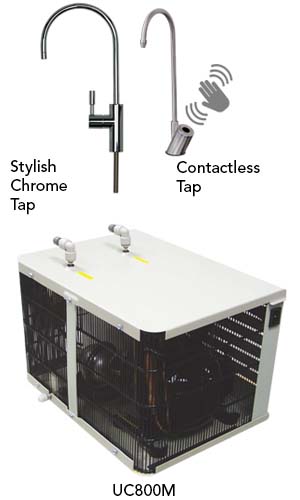

The UC800M Undersink Chiller

UC800 Undersink Chiller Options

• UC800M: Undersink Chiller without Tap. Most often used as the Chiller Unit for the EZYTAP7800/7800T View Brochure

• UC800MC:Undersink Chiller with stylish chrome designer tap View Brochure

• UC800MCL: Undersink Chiller with Contactless tap with Infra-Red Sensor View Brochure




Product Specification
• The UC800 Undersink Chiller supplies 11.5ltr/hour of chilled water below 10°C
• Sealed Compressor with R600a gas
• Compressor cooled and fan assisted. 2°C to 12°C adjustable cold water thermostat
• Fan assisted convection condenser
• 220V – 240V, 50/60 Hz
• Dimensions (mm): 255H 290W 402D
• Weight: 12.5kg
aa_uc800mcl_product_brochure_-_english.pdf
Brochure Thumb:

Technical Drawing & Parts List:
aa_uc800mcl_parts_list.pdf
Technical Thumb:

Installation Brochure:
uc800_installation_instructions.pdf
Installation Thumb:

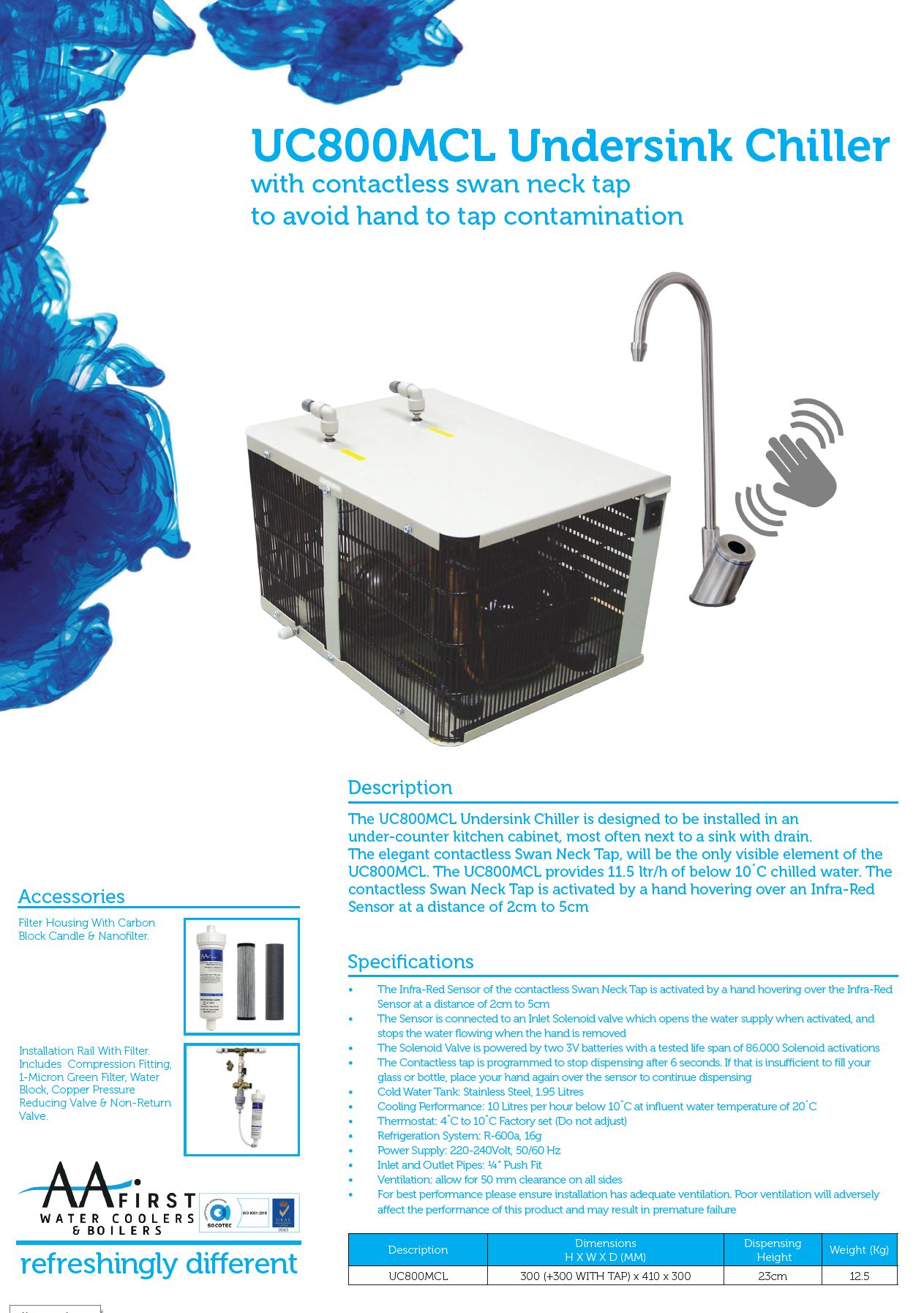

UC800MCL Brochure

UC800M/MC Brochure

Parts List

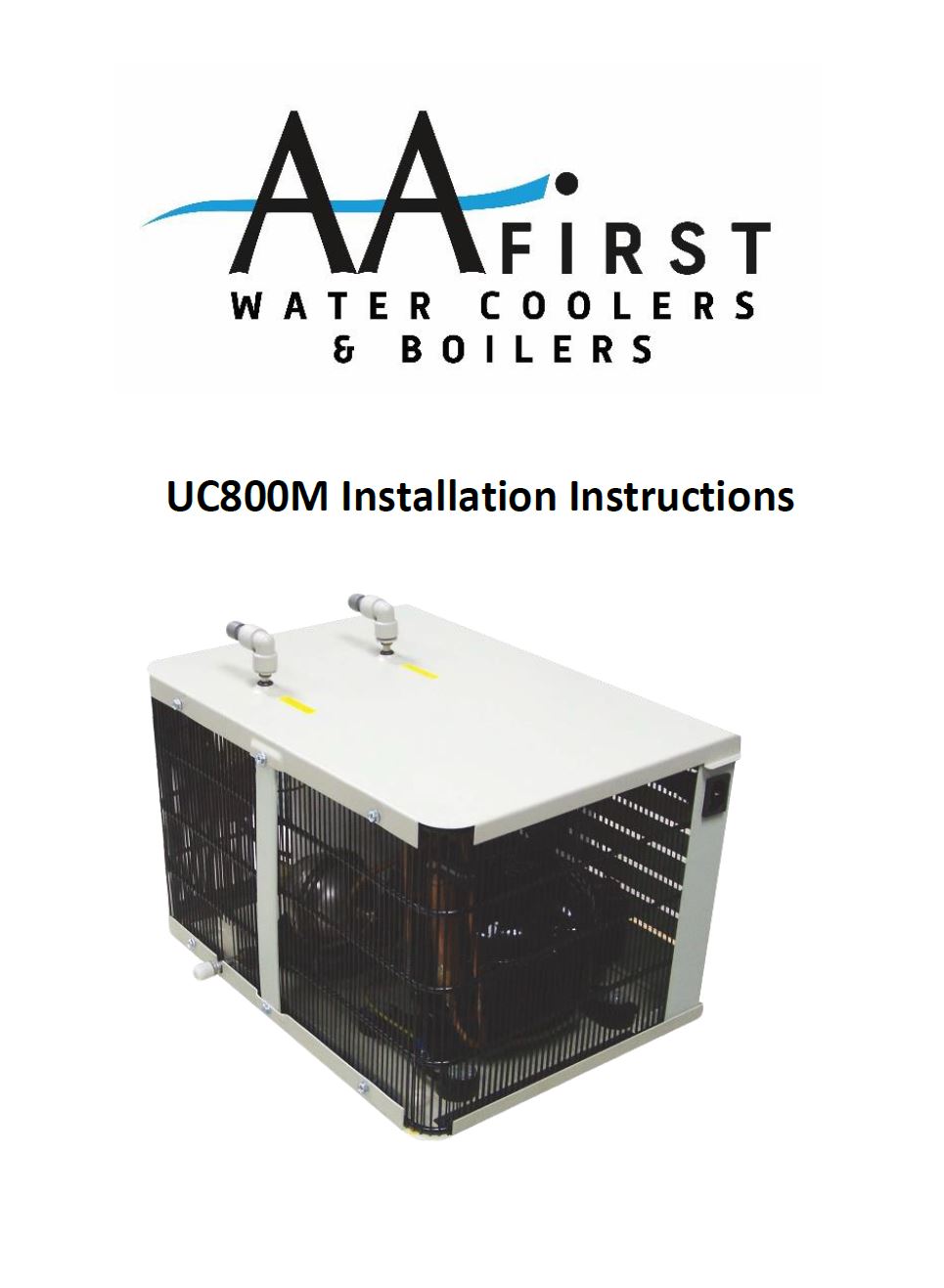

Installation Guide
