NEW EZTAP7800T (24cm Taller Tap)
Elegant Touch Pad Tap with Undersink Boiler and Undersink Chiller for Instant Hot & Chilled Water
Product Specification
EZYTAP7800/7800T
- Elegant Tap system with touch control to dispense hot and chilled water at the touch of a button
- The Tap comes in two different heights. The EZYTAP7800 has a dispensing height of 18.5cm and the EZYTAP7800T dispensing height at 24cm is 5.5cm taller
- Fitting the touch pad tap requires a 35mm hole in the worktop to connect the tap to the Boiler and Chiller to the tap
- 4 Litre Hot tank with an hourly output of up to 14 litres per hour above 90 degrees
- Instant Draw Off 3 litres above 90 degrees

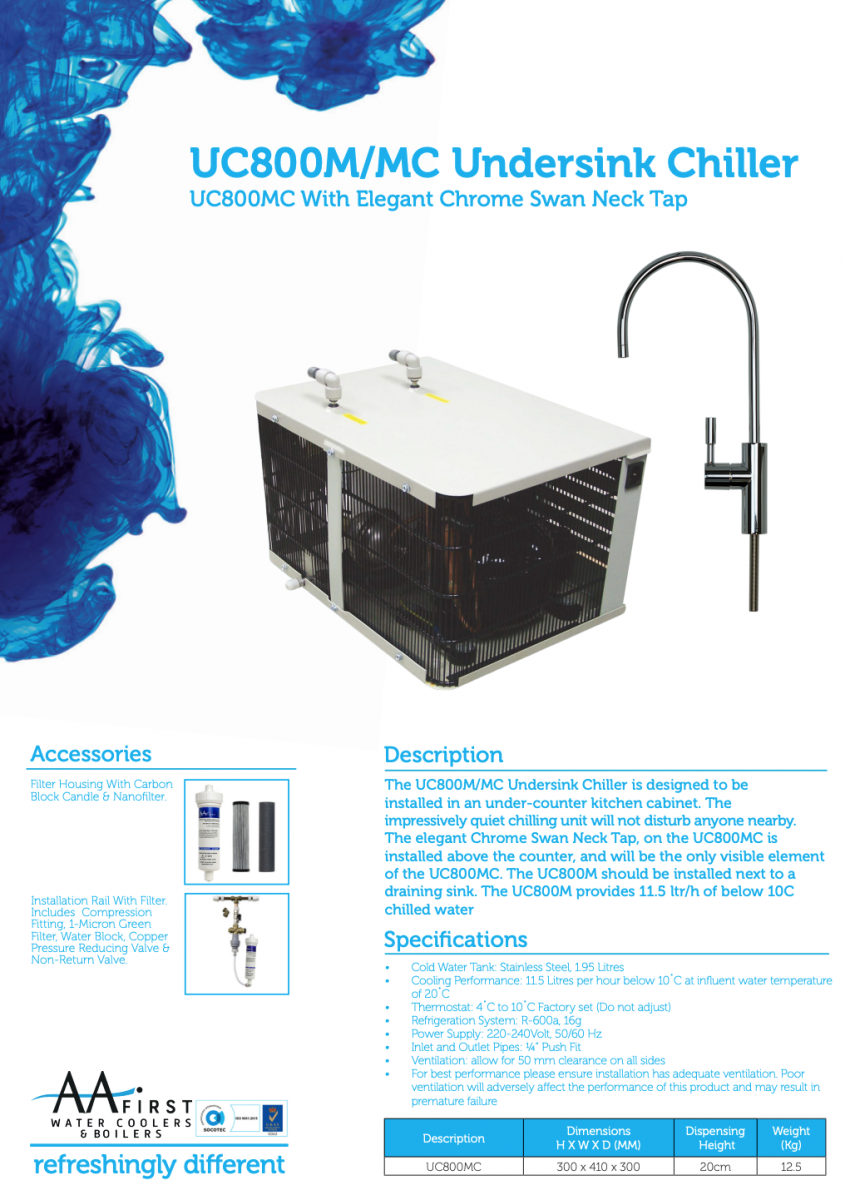

- The Undersink Chiller provides up to 11.5 litres of Chilled Water below 10°C/hr
- Fan assisted cooling
- Refrigerant R134a
- Simple cleaning and descaling: The tank can be removed opened and cleaned
- Automatic safety thermal cut out to prevent boil dry and damage to the unit
- High quality thermal insulation that meets UL 94 standards for safety
- 2000 Watt SUS 316 stainless steel ring type element
|
EZTRAY2 Integrated Drip Tray For The EZYTAP Easy to fit with minimal disruption to the work surface (EZTRAY2 is purchased separately) |
Technical Drawing & Parts List:
